THE PATENTED PRODUCTION
PROCESS FOR VAPOR BARRIER FILM

The vapor barrier film by Barrier-Bac is made of the incredibly strong and high performing, co-extruded, cross-laminated XF Film.

TAKE A LOOK AT THE BARRIER-BAC PATENTED PRODUCTION PROCESS

1

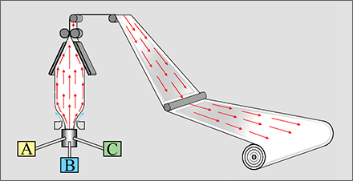

First Process

The co-extruded film is blown from a three-ply resin structure, keeping the molecular orientation in the direction of machine operations.

Barrier Bac Process - 1
2

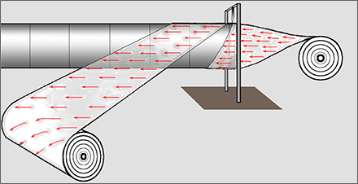

Second Process

The film bubble is cut at a specific angle by a spiral-cutting machine. Now the molecular orientation of the cut film is crossing to the machine direction with a specific angle.

Barrier Bac Process - 2
3

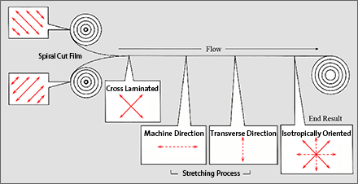

Third Process

Multi-layers of the spiral cut films, with orientations at opposite angles, are laminated together.

The cross-laminated film must go through a stretching process in different directions, so the molecules of the final products are isotropically oriented. This process highly enhances the strength of the film.

Barrier Bac Process - 3
